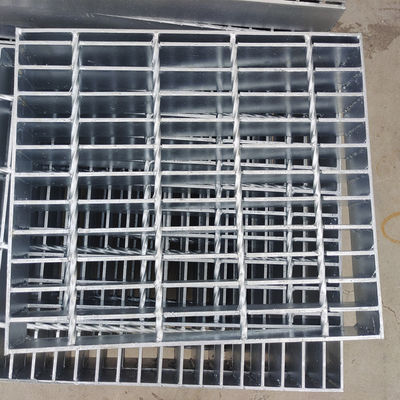

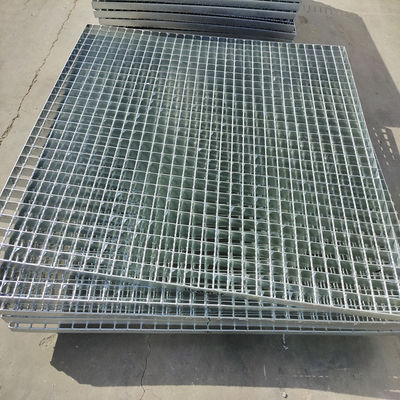

Customizable Heavy Duty Steel Grating Anti Corrosion Non Slip Breathable Galvanized

Heavy-duty customizable anti-corrosion non-slip breathable steel grating galvanized

Steel Grating Specification Available:

Bearing bar:25mmx3mm,30mmx2mm,30mmx5mm,35mmx5mm

Cross rod:6mm-8mm twisted rod

Bearing bar pitch:30-40mm

Cross rod spacing:100mm

Panel size:100*100cm, 100*300cm,914mm width*5.8m long.

Surface:hot dip galvanized/ stainless steel/painting.

Material:Q235 iron steel.

1. Material :Mild steel & Low carbon steel, etc.

2. Surface process: hot-dipped galvanized ,electro-galvanized and spraying and soaking.

3. Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.so we can produce high quality gratings with firm welding,smooth surface and high strength.

4. Sign of the shape of bearing bars.
F- Plain style
S- Serrated style

I- I-section style

5. Sign of surface treatment
G- Hot galvanizing (it is recommended)
P- Painted
U- untreated

Steel Grating Feature

1) The steel grating can reduce the supportive material, investment, save workman and time.

2) It can be used in almost all applications.

3) Lightweight and economical.

4) Low maintenance cost, because the surface will be galvanized, the anti-corrosion is 15~30 times than ungalvanized.

Application of Steel Floor Grating

1) It can be used in urben construction as drainage trench cover to drain water and keep ground dry.

2) The serrated steel gratings will be used in the port, parking lot, farmland and other places to be walk platform for pedestrian and vehicles access and passing.

3) Forge-Welding gratings also will be used for industry platform, power plant, water treatment industry, tower platform, etc.

4) Serrated steel gratings also be guardrail for garden, villa, balcony, highway, etc.
