Hot Dipped Galvanized 316 Heavy Duty Steel Grating Floor Stainless

  • Hot Dipped Galvanized 316 Heavy Duty Steel Grating Floor Stainless
  • Hot Dipped Galvanized 316 Heavy Duty Steel Grating Floor Stainless
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 325/40/50
Minimum Order Quantity 10 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 7-10work days
Payment Terms L/C, T/T
Supply Ability 800 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Q235, SS316 Surface Treatment Hot Dipped Galvanized, Painted, Galvanized, Black, Untreated
Product Name Steel Grating, Hot-dip Galvanized Heavy Duty Steel Grating For Water Well Cover, Hot Dip Galvanized Mild Steel Bar Grating And Metal Grid Weight Length Max 6000mm, 0.8m, Customer's Demand, 2m
Height 25~40mm Keywords Steel Grating, Swimming Pool Drain Grating
Highlight

316 heavy duty steel grating

,

floor stainless heavy duty steel grating

,

galvanized heavy duty steel bar grating
Leave a Message
Product Description

Hot dipped galvanized grating steel,steel grating floor Hot Dip stainless steel grating



Steel Grating Specification Available:

Bearing bar:25mmx3mm,30mmx2mm,30mmx5mm,35mmx5mm

Cross rod:6mm-8mm twisted rod

Bearing bar pitch:30-40mm

Cross rod spacing:100mm

Panel size:100*100cm, 100*300cm,914mm width*5.8m long.

Surface:hot dip galvanized/ stainless steel/painting.

Material:Q235 iron steel.



Steel Grating Feature

1) The steel grating can reduce the supportive material, investment, save workman and time.

2) It can be used in almost all applications.

3) Lightweight and economical.

4) Low maintenance cost, because the surface will be galvanized, the anti-corrosion is 15~30 times than ungalvanized.



Application:

Heavy duty steel grating is widely used in many areas:

a. It can be used as stair tread grating.

b. It can be used in the municipal engineering as drainage trench covers to drain water and keep ground dry.

c. It can be used in the port, parking lot, farmland and other places as platform walkway grating for pedestrian and vehicles access & passing.



Material
Low carbon, middle carbon, stainless steel, Q235
Bearing Bar Type
Flat bar, serrated bar, I bar, etc.
Bearing Bar

(width*thickness)
25*3, 25*4, 25*4.5, 25*5, 30*3, 30*4, 30*4.5, 30*5, 32*5, 40*5,
50*5, 65*5, 75*6, 75*10,...100*100mm etc.
I bar:25*5*3, 30*5*3, 32*5*3, 32*5*3, 40*5*3 etc.
US standard:1"*3/16", 1/4"*3/16", 1/2"*3/16", 1"*1/4",
1/4"*1/4", 1/2"*1/4", 1"*1/8", 1/4"*1/8", 1/2"*1/8" etc
Bearing Bar Pitch

(Bearing Bar Spacing)
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35,
38.1, 40, 41.25, 60, 80mm etc
US standard:19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Cross Bar Pitch
24 to 200mm
Cross Bar Size
6*6, 8*8, 10*10, 12*12mm,etc
Surface Treatment
Hot dipped galvanized,painted,self-color,etc

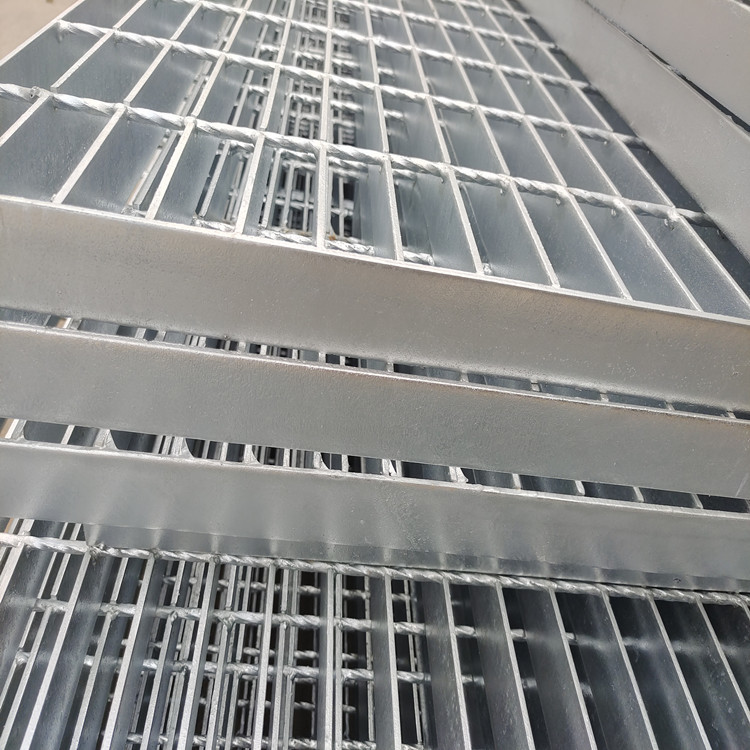

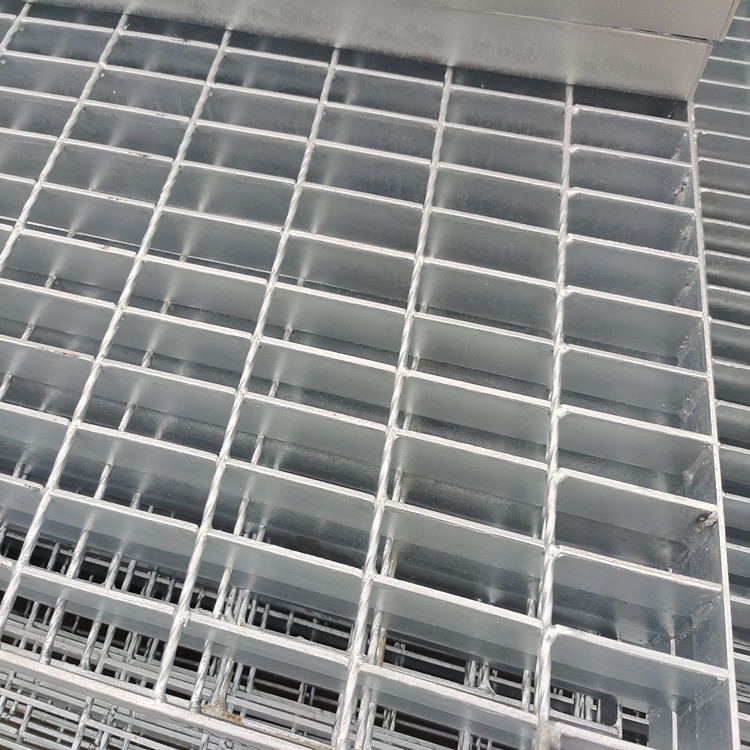

Hot Dipped Galvanized 316 Heavy Duty Steel Grating Floor Stainless 0Hot Dipped Galvanized 316 Heavy Duty Steel Grating Floor Stainless 1



FAQ
1. who are we?
We are based in Hebei, China, start from 2005,sell to Domestic Market(88.00%),Mid East(2.00%),North America(00.00%),South America(00.00%),Southeast Asia(00.00%),Africa(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gabion Box & Welded Gabion Box / Zink Wrought Iron Fence / 358 Anti Climbing Fence

4. why should you buy from us not from other suppliers?
Fencing expert. We have exported the wire mesh fence for more than 10 years.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
