Q235 Heavy Duty Steel Grating Metal Building Materials Galvanized

  • Q235 Heavy Duty Steel Grating Metal Building Materials Galvanized
  • Q235 Heavy Duty Steel Grating Metal Building Materials Galvanized
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 304/30/100
Minimum Order Quantity 5 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 10-12 work days
Payment Terms L/C, T/T
Supply Ability 1500 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Q235, SS316 Width 100-995mm
Height Customized, 25~40mm Name Steel Grating, Steel Floor Decking
Usage Bathroom, Outdoor, Garge, Deck Floor Tree Catwalk Driveway, Bulding Materails Color Silver, Black, Silver Or As Your Requirement, Based On Customer's Requirement
Keywords Steel Grating, Swimming Pool Drain Grating Size 6m*1m, 3'x20', 1*1m, 500mmX500mm, Customized
Highlight

q235 heavy duty steel grating

,

galvanized building heavy duty steel grating

,

q235 heavy duty grating
Leave a Message
Product Description

Metal Building Materials Galvanized Steel Grating Heavy Duty Steel Grating



Steel Grating Specification Available:

Bearing bar:25mmx3mm,30mmx2mm,30mmx5mm,35mmx5mm

Cross rod:6mm-8mm twisted rod

Bearing bar pitch:30-40mm

Cross rod spacing:100mm

Panel size:100*100cm, 100*300cm,914mm width*5.8m long.

Surface:hot dip galvanized/ stainless steel/painting.

Material:Q235 iron steel.



1. Material :Mild steel & Low carbon steel, etc.

2. Surface process: hot-dipped galvanized ,electro-galvanized and spraying and soaking.

3. Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.so we can produce high quality gratings with firm welding,smooth surface and high strength.

4. Sign of the shape of bearing bars.
F- Plain style
S- Serrated style

I- I-section style

5. Sign of surface treatment
G- Hot galvanizing (it is recommended)
P- Painted
U- untreated



Steel Grating Feature

1) The steel grating can reduce the supportive material, investment, save workman and time.

2) It can be used in almost all applications.

3) Lightweight and economical.

4) Low maintenance cost, because the surface will be galvanized, the anti-corrosion is 15~30 times than ungalvanized.



Steel grating accessories are used to install and fix steel grating. They are very necessary. Steel grating accessories have wear resistance, high strength and resistance to stress, rust-proof performance.

Classifications of steel grating accessories:

  • Saddle clips: A special bent-clip type fastener for removable bar grating panels.
  • G-clips: A special friction fastener can be used with aluminum, stainless steel and galvanized steel.
  • Grate fast clips: Grating can be connected by one man only, working from above, without the need to drill the steel or weld on site.
  • Weld lugs: Weld lugs may be used for installations where grating is subject to removal.
  • Z-clip: This is the most versatile clip anchor. They are especially helpful in holding down riveted grating.
  • R-clip: A special formed metal fastener available in various sizes to fit any job.
  • Countersunk land: It is available for aluminum grating only. Not available for steel.
  • Anchor block: It can be used to fasten permanent or removable grating panels.



Product Name
Steel grating,welded grating
Material
Low carbon steel / Stainless steel
Grade
CN: Q235, US: A36, UK: 43A
Standard
CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS 4592-1987, AU 16571988, JJS
Certification
CE, ISO9001, ISO14001, HSE
Bearing bar size
20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8mm, etc
Bearing bar pitch
20,25,30,32.5,34.3,40,50,60,62,65mm
Bearing bar type
Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross bar size
5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar)
Cross bar pitch
40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel size
3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request
Surface treatment
Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement.
Galvanization Standard
CN: GB/T13912, US: ASTM (A123), UK: BS729
Color
Silver/Black
Application
petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing

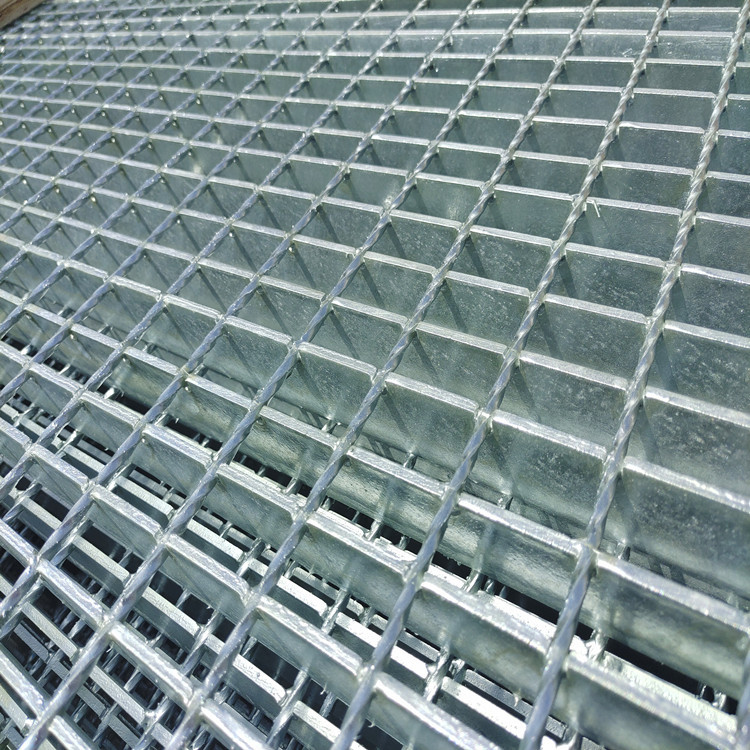

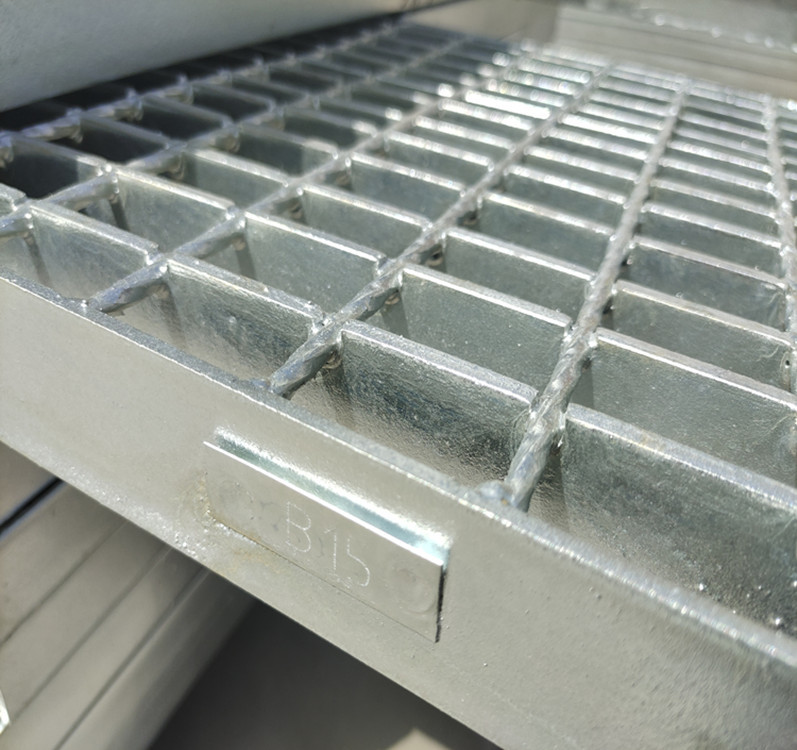

Q235 Heavy Duty Steel Grating Metal Building Materials Galvanized 0Q235 Heavy Duty Steel Grating Metal Building Materials Galvanized 1

Our Services

Price: we have a reasonable price for the quality of the goods



Lead time: around 15 days/ 10 tons based on the special situation around the word.



Payment term: Trade assurance Order within Alibaba, T/T, L/C, Credit Card, E-checking, Paypal, Pay in RMB.



Delivery: within the fastest speed of delivery



After-sales services: 1. we support the video online help, 2. Immediately to solve the problem you have within 24 hours. 3. 24hours online, free taking with 4. our people will go to your place to solve the issues if this necessary, 5, Yongchang care plus: we can guarantee the goods within certain years, if not we will resend the new one for you no matter how much it is.



For workers: we do have medical insurance and mutual benefits for the workers.



FAQ
1. who are we?
We are based in Hebei, China, start from 2011,sell to North America(50.00%),Southeast Asia(35.00%),Oceania(30.00%),Western Europe(25.00%),Mid East(20.00%),Africa(20.00%),Eastern Asia(15.00%),Eastern Europe(15.00%),South America(15.00%),South Asia(10.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
stainless steel wire mesh,gabion box,field fence,wrought iron fence,temporary fence

4. why should you buy from us not from other suppliers?
The company adheres to scientific management, technological innovation, and honest management.It relies on advanced production equipment, implements a strict standardized production system, and adopts the ISO9000 international quality management system

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union,Escrow;
Language Spoken:English,Chinese
