Metal Bearing Bar Heavy Duty Grating Grid Serrated Mesh

  • Metal Bearing Bar Heavy Duty Grating Grid Serrated Mesh
  • Metal Bearing Bar Heavy Duty Grating Grid Serrated Mesh
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 455/30/100
Minimum Order Quantity 20 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 7-12 work days
Payment Terms L/C, T/T
Supply Ability 1000 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Galvanized Sheet, Aluminium, SS316L Product Name Steel Grating, Hot-dip Galvanized Heavy Duty Steel Grating For Water Well Cover
Application Floor, Walkway, Bridge, Platform, Steel Structure Size 6m*1m, 3'x20', 1*1m, 500mmX500mm, Customized
Bearing Bar Pitch 30mm, 45mm, 40, Etc Keywords Steel Grating, Swimming Pool Drain Grating
Width 600-1250mm, 50-500MM, 995mm Color Silver, Black, Silver Or As Your Requirement, Based On Customer's Requirement, Matt White. Silvery
Highlight

hdg heavy duty metal grate

,

hdg heavy duty grating

,

serrated heavy duty grating
Leave a Message
Product Description

Heavy Duty Steel Grating metal bearing bar steel grid serrated steel mesh

steel grating informations:



1.Material: Mild (low carbon) steel (CN: Q235, US: A36, UK: 43A) or stainless steel



2.Surface treatment:galvanized {CN: GB/T13912, US: ASTM (A123), UK: BS729} ,painted,untreated



3.Style:serrated,serrated-I shape



4.width and length are all on request.



5.Certification: ISO9001:2008,CE



6.Characteristics:light weight, high bearing capacity, safe , skid-proof, easily fixed and dismantled, economical ,long life and durable, ventilated and penetration of light, easily to be cleaned, beautiful in appearance.

7.Application:Widely used in electricity, petrochemical, chemical industry, metallurgy, machines, modeling, port, marine engineering, construction, papermaking, medicine, textile, well cover, suspended ceiling, ventilation and penetration of light, etc



8.Packaging Detail: pallet or according to the customers' requirements



The Steel Grating Feature



1. High strength light construction

2.Strong corrosion resistance and durability

3.Beautiful appearance and glossy surface

4. Do not accumulate dirt, not rain snow, not water, self clean, easy maintenance

5. Ventilation, lighting, heat dissipation, anti-skid, good explosion resistance



No Item Description
1 Bearing bar 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2 Bearing bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3 Cross bar pitch 38,50,76,100,101.6mm
4 Material Q235,A36,SS304
5 Surface treatment Black, hot dipped galvanized, paint
6 Thickness Thickness≥3mm, depth ≥19mm
7 Standard China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985

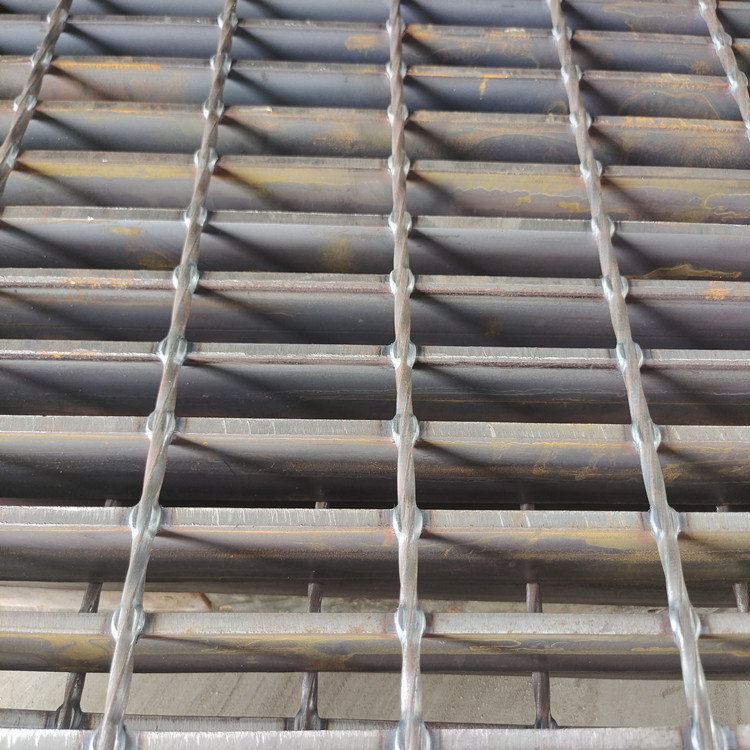

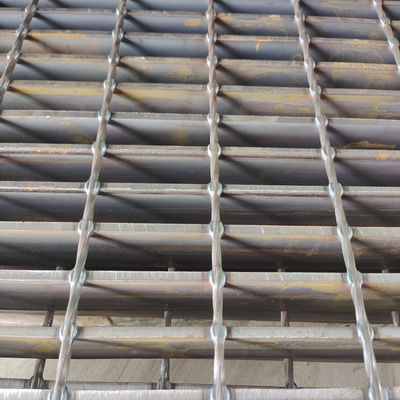

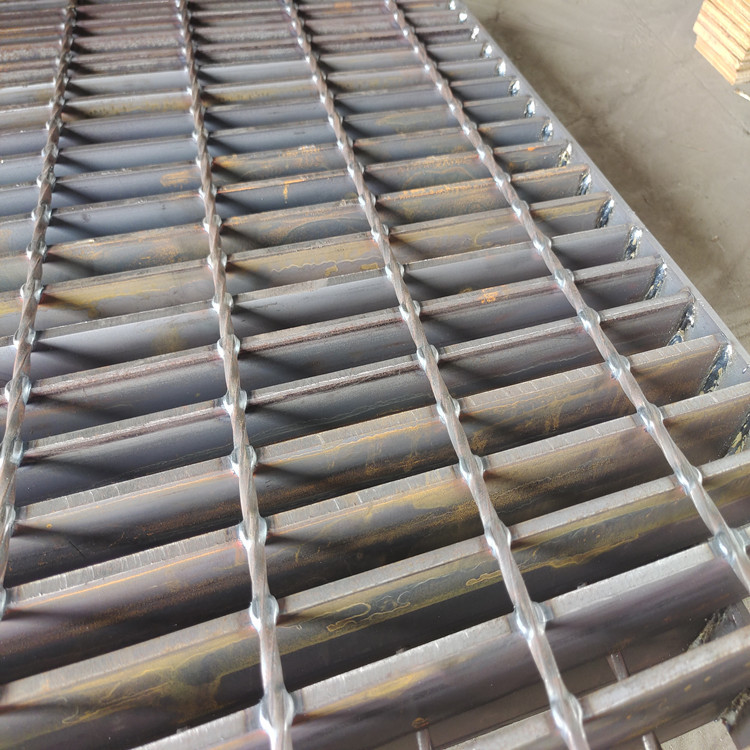

Metal Bearing Bar Heavy Duty Grating Grid Serrated Mesh 0Metal Bearing Bar Heavy Duty Grating Grid Serrated Mesh 1Metal Bearing Bar Heavy Duty Grating Grid Serrated Mesh 2



Service
1> 24 hours online service.
2> Best pre-sale and after-sale service.
3> 15 days after receiving the deposit shipment.
4> We will choose the shipping company with good service and low price for you.
5> Loading the goods: We will track all the way, to ensure product safety, quick to arrive at the designated port.
6> Arrival of the goods: We will provide installation instructions and subsequent technical guidance.
7> Company for products and accessories, for a long time to be able to provide various products accessories at cost to the customer at any time.



FAQ

Q: Are you a manufacturer?
A:Yes, we have been in providing the professional products in wire mesh field for 10 years.

Q:Why choose us?
A: Save Time,Save Cost and Safety!Each of our customers proved this!

Q: How about the payment terms?
A:We usually use the T/T,L/C,D/P, Western Union.Trade assurance service optional for over $100 order. (100% guaranteed transaction by Alibaba ). L/C optional if over $50k. Paypal optional if below $500.

Q: How about the delivery time?
A:Usually within 15- 20 days,customized order may need longer time.

Q:Can you offer free sample?
A:Yes, but usually the customer need to pay the freight.We'll send back the courier charge if you make an order.

Q: Can I have your products with my own logo on it?
A: Yes! Accept any custom logos, just send us your design in pdf. ai, or high res jpg.We would send you layout art with your logo on our products to check.The setup cost would be quoted per artwork.
