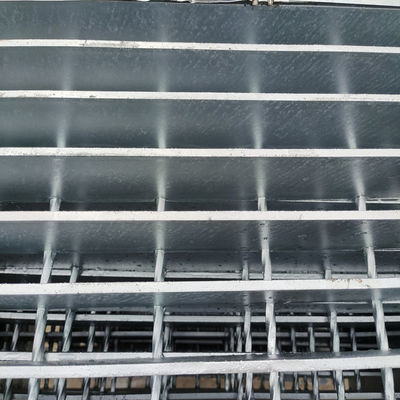

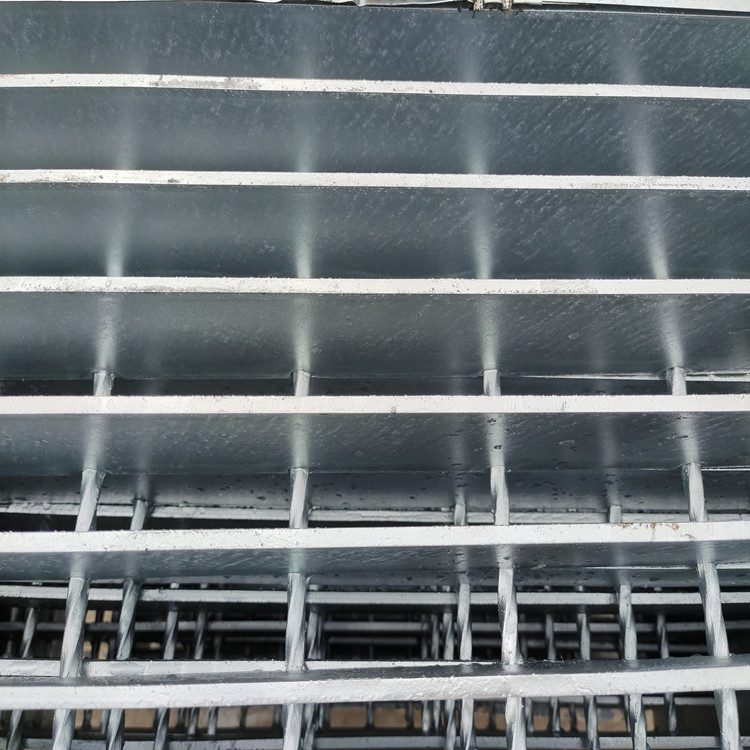

655/30/100 Galvanized Driveway Heavy Duty Steel Grating Metal Bearing Bar

  • 655/30/100 Galvanized Driveway Heavy Duty Steel Grating Metal Bearing Bar
  • 655/30/100 Galvanized Driveway Heavy Duty Steel Grating Metal Bearing Bar
  • 655/30/100 Galvanized Driveway Heavy Duty Steel Grating Metal Bearing Bar
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 655/30/100
Minimum Order Quantity 80 piece
Price Can discuss

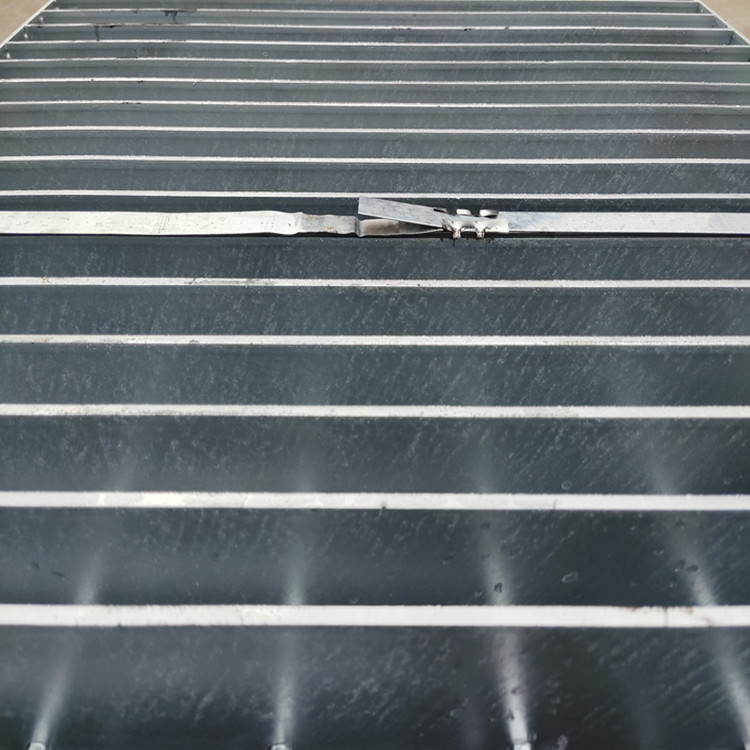

Packaging Details Steel belt packaging
Delivery Time 9-12 work days
Payment Terms L/C, T/T
Supply Ability 1500 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Galvanized Sheet, Aluminium, SS316L Surface Treatment Hot Dipped Galvanized, Painted, Galvanized, Untreated, Hot Dipped Galvanized
Product Name Steel Grating, Hot-dip Galvanized Heavy Duty Steel Grating For Water Well Cover, Hot Dip Galvanized Mild Steel Bar Grating And Metal Grid Weight Color Silver, Black, Silver Or As Your Requirement, Based On Customer's Requirement, Matt White. Silvery
Type Plain Bar Grating, Steel Plate, 19-w-4, I Type Or Serrated Standard ISO9001, BS4592-1987, AS1657-1985
Bearing Bar Pitch 30mm, 45mm Keywords Steel Grating, Swimming Pool Drain Grating
Highlight

driveway heavy duty steel grating

,

655/30/100 heavy duty steel grating

,

hdg heavy duty steel floor grating
Leave a Message
Product Description

Galvanized steel driveway grating heavy duty metal bearing bar steel grating



Product Description



1. Steel grille drain grating is the workhorse of the industrial flooring market and has served industry for decades. Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.

2. Steel grille drain grating adopt high percentage of open area makes bar grating nearly maintenance free and all products are fully recyclable.
3. Steel grille drain grating characteristics: high strength,and light structure-Firm mesh welding structure endows it with the characteristics of high load bearing, light structure and convenience for lifting.

4. Steel grille drain grating use is architectural decoration, shipbuilding, self-propelled parking lot, municipal engineering, environmental protection engineering and other fields platform, walkway, trestle, ditch cover, well cover, ladder, fence, etc.



Application of galvanized serrated steel grating


galvanized steel grating are widely used by various plants such as electric power,petroleum,chemical industry,metallurgy industry,machinery industry,shipbuilding, harbor,oceanographic engineering,building,paper mills,cement plant,medicine,spinning and weaving,foodstuff factory,transportation,municipal administration,parking lot,etc.



Introduction of hot dip galvanized steel grating
Bearing bar
- A flat bar withstanding the main load is in consistent with the span direction .
bearing bar pitch
- the distance center to center of the two bearing bars.
Cross bar
- the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars
Cross bar pitch
- the distance center to center of the two adjacent cross bars.
Length
(span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the bearing bars .
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.



Material Low carbon,middle carbon,stainless steel
Material standard GB700-88,ASTM(A36),BS4360(43A),AS3679
Bearing bar size 20*3,20*5,25*3,25*5,32*3,32*5,35*3,35*5,
40*3,40*5,45*5,50*3,50*5,55*5,60*5,65*5mm etc,
Bearing bar pitch 15,20,25,30,33,35,38,40,50,60,80,90mm
Cross bar pitch 24-200mm
Surface treatment Hot dipped galvanized,painted,self-color,
Grating standard YB/T4001.1-2007,ANSI/NAAMM(MBG531-88),BS4592-1987,AS1657-1985
Bearing bar type F,I ,S,IS type
Application Floor walkway,industrial platform,stair tread,metal ceiling
Feature Fine appearance,anti-corrosive,simple installation,light weight,
high load,anti-skid,Prevent dirt deposition,ventilation,anti-explosion


655/30/100 Galvanized Driveway Heavy Duty Steel Grating Metal Bearing Bar 0655/30/100 Galvanized Driveway Heavy Duty Steel Grating Metal Bearing Bar 1655/30/100 Galvanized Driveway Heavy Duty Steel Grating Metal Bearing Bar 2



Our Advantages

A. Steel Grating, including plain and serrated steel grating, size and specification can be produced according to customer's requirements.

B. Stair Tread: There are 8 types of treads distinguished by different nosing & way of installation.

C. Drainage Pit/Trench Cover

D. Railing & Stanchion

Total Staff: About 300, including 50 managers, 10 technical engineers.

Total Area: 25, 000 square meters and with workshop area of 18, 000 square meters.

Main Equipment: 8 press-welding machines



FAQ
1. who are we?
We are based in Hebei, China, start from 2020,sell to Southeast Asia(40.00%),Western Europe(20.00%),North America(7.00%),South America(7.00%),Eastern Europe(6.00%),Africa(5.00%),Mid East(5.00%),Central America(5.00%),Oceania(3.00%),Eastern Asia(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
welded wire mesh,galvanized wire,common nails,window netting,hex netting

4. why should you buy from us not from other suppliers?
Our factory was established in 1990 and started export business in 2001. We have very rich experience in processing and exporting wire mesh products. Our factory is located in Anping with good geographical advantages and price advantages.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Spanish
