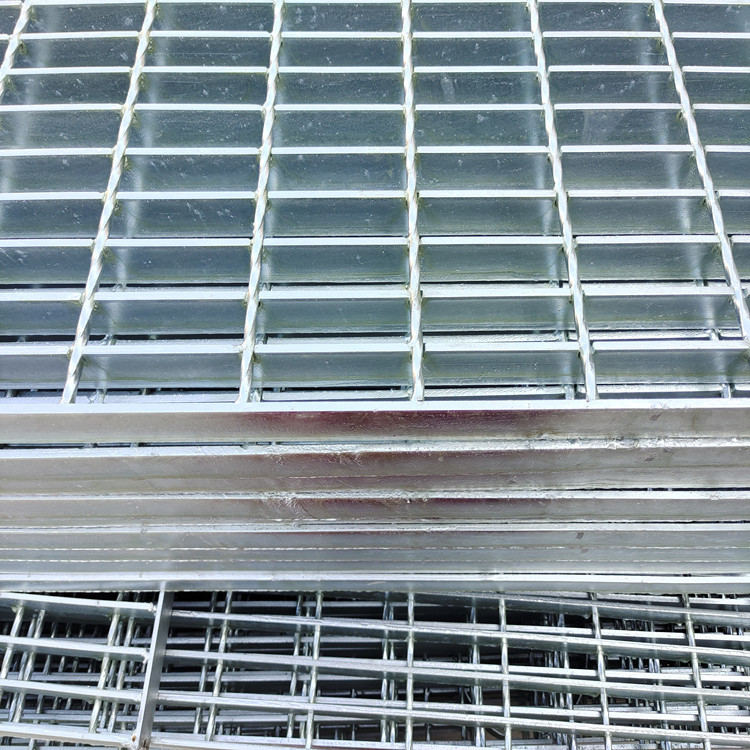

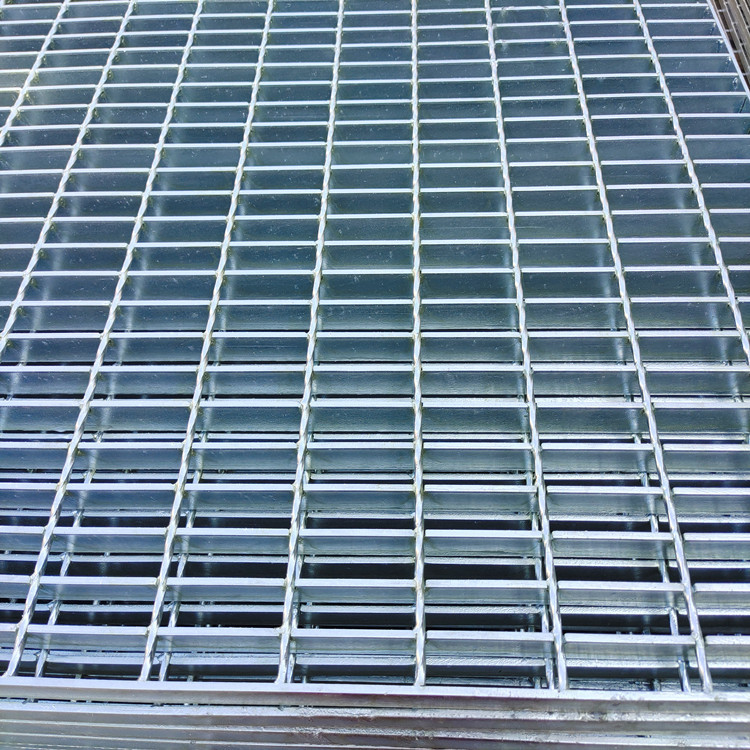

405/30/100 Heavy Duty Steel Grating Hot Dip Galvanized Bar Floor
| Place of Origin | Hebei |
|---|---|
| Brand Name | Zhuote |
| Certification | ISO9001-2015 |
| Model Number | 405/30/100 |
| Minimum Order Quantity | 22 piece |
| Price | Can discuss |
| Packaging Details | Steel belt packaging |
| Delivery Time | 14 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1100 Square meters/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel, Q235, SS316 | Surface Treatment | Hot Dipped Galvanized, Galvanized, Painting, Hot Dip Galvanized, Painted |
|---|---|---|---|
| Type | Plain Bar Grating, Serrated Bar Grating, Plain, Serrated | Color | Silver, Silver Or As Your Requirement, Green, Black, White |
| Thickness | 6mm, 3mm | Width | 995mm, 1.5m, 600-1250mm, 0.3m, Up To 824mm |
| Length | Max 6000mm, 0.8m, Customer's Demand, 2m | Keywords | Steel Grating, Swimming Pool Drain Grating |
| Highlight | 405/30/100 heavy duty steel grating,hot dip heavy duty steel grating,galvanized heavy duty steel floor grating |
||
Product Description
Heavy Duty Hot Dip Galvanized Steel Bar Grate floor grating Weight Per Square Meter
Product Description:
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
4) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
5) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS
THE BAR GRATING ADVANTAGE:
Appropriate Materials– Manufactured from carbon steel, aluminum, stainless steel and specialty alloys, bar gratings provide safe, durable and functional products for nearly all environments.
High Percentage of Open Area– Typically ranging from 50 to 80 percent, this allows for the unhindered passage of light, air and liquids, thereby reducing the costs for lighting, ventilation and fire suppression.
High Strength-to-Weight Ratio– Designed for maximum efficiency, metal bar gratings are capable of supporting loads ranging from light pedestrian traffic to the heaviest vehicular and aircraft loads.
Product Flexibility– Metal bar grating and stair treads can be shop or field fabricated to suit the exact configuration of your applications.
Economy– In most cases the grating is shop fabricated to fit the contours and intricacies of each job, with the finish applied prior to arriving at the jobsite. Once anchored in place, the floor is immediately ready for service, thereby minimizing costly field labor.
Maintenance-Free– The high percentage of open area allows for excellent drainage and the free passing of debris, thus creating a virtually maintenance-free surface.
| No. | Item |
Description
|
| 1 | Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| 2 | Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 4 | Material Grade |
ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS |
steel gratings application:
flooring steel gratings
stair treads
sun shades
drain covers
security screen
manhole covers
mezzanine flooring
earth mats
shelving
Stanchions (hand rails)
trench covers
FAQ
Q: Why to choose us? Any advantages?
A: The answer is Yes.
1) The most preferential price:Our offer will be reasonable, our price will be cheaper in the
same quality.
2) Customize: We can make the product as your request, specification,size and quality can meet
your request.
3) Mix order: We accept mix order, different specification and small quantity order.
4) Quality assurance:We have professional quality testing team.They will test the products before shipment.
5) After-sales service:Any question is welcome.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on alibaba, please have a detailed looking and choose the interested products in our site.
Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead, etc, we will do that as your request and calculate the price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the products specification,quantity and other requirements. We will make the most competitive quotation to you as soon as possible.
