Galvanized 253/40/100 Heavy Duty Steel Grating Catwalk Platform Walkway Floor Weld Bar

  • Galvanized 253/40/100 Heavy Duty Steel Grating Catwalk Platform Walkway Floor Weld Bar
  • Galvanized 253/40/100 Heavy Duty Steel Grating Catwalk Platform Walkway Floor Weld Bar
  • Galvanized 253/40/100 Heavy Duty Steel Grating Catwalk Platform Walkway Floor Weld Bar
  • Galvanized 253/40/100 Heavy Duty Steel Grating Catwalk Platform Walkway Floor Weld Bar
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 253/40/100
Minimum Order Quantity 77 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 12 work days
Payment Terms L/C, T/T
Supply Ability 1200 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Q235, SS316 Type Plain Bar Grating, Serrated Bar Grating, Plain, Serrated
Color Silver, Silver Or As Your Requirement, Green, Black, White Length Max 6000mm, 0.8m, 2m
Keywords Steel Grating, Swimming Pool Drain Grating Height 25/30/32/35/40mm, Customized, 25~40mm
Highlight

253/40/100 heavy duty steel grating

,

weld bar heavy duty steel grating

,

catwalk heavy duty grating
Leave a Message
Product Description

Heavy Duty Galvanized catwalk platform walkway floor weld steel bar grating



Product Description:

Bearing bar:25mmx3mm,30mmx2mm,30mmx5mm,35mmx5mm

Cross rod:6mm-8mm twisted rod

Bearing bar pitch:30-40mm

Cross rod spacing:100mm

Panel size:100*100cm, 100*300cm,914mm width*5.8m long.

Surface:hot dip galvanized/ stainless steel/painting.

Material:Q235 iron steel.



Welded steel grating:

when selecting a bar grating product, consider Welded Steel Grating first. Usually our most economical products, they provide a comfortable walking surface with nearly 80 percent open area. This, combined with the positive welded cross bar/bearing bar intersection, make these products our most popular. Manufactured from ASTM A-1011 carbon steel, welded gratings are recommended for nearly all industrial flooring applications.





No. Item

Description


1 Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2 Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,

Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1985,

Germany: DIN24537-1-2006, Japan: JIS

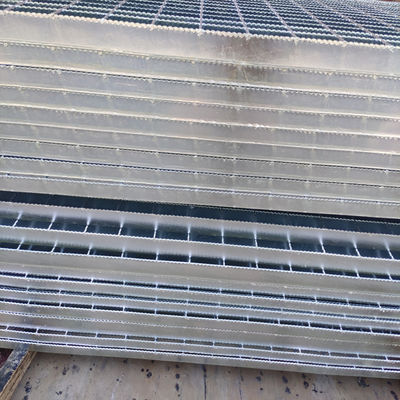

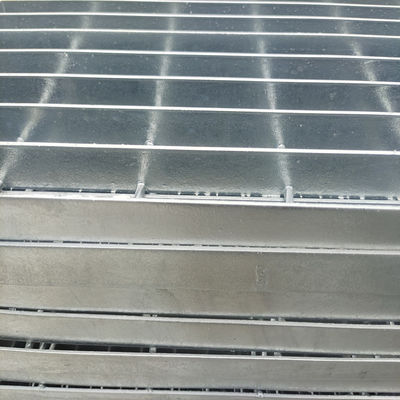

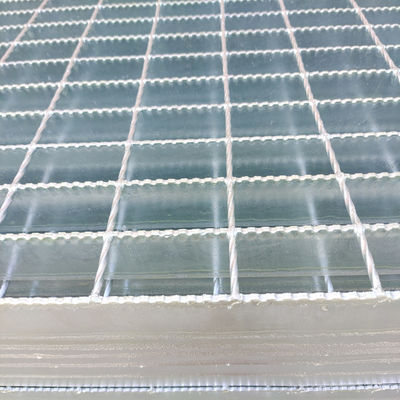

Galvanized 253/40/100 Heavy Duty Steel Grating Catwalk Platform Walkway Floor Weld Bar 0Galvanized 253/40/100 Heavy Duty Steel Grating Catwalk Platform Walkway Floor Weld Bar 1



The advantages, specification application and features of steel grating:


Steel grating offers the following advantages compared with steel grid sheets:
Steel structural platform has light weight, good strength, large carrying capacity and can save materials and cost. It offers good ventilation of light and wind, a modern sense, aesthetic appearance and anti-skid safety. It is also easy to clean, easy to installation and durable for uses.

Steel grating products are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering, and they offer the following the features:

Steel grating characteristics

1.High strength and light structure

2.Powerful anti-corrosion,durable and long working life

3.Easy installation and durable

4.No dirt-rain-snow deposit,automatic cleaning,eay maintenance

5.Good ventilation,day-lighting,heat-dispersing,resistant to sliding and explosion

6.Easy installation and disassembly



Our Services



Pre-sale Service

1. We will try our best to find a lowest freight cost for customers reference.

2. We have full stock, and can deliver within short time. Many styles for you to choose.

3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.



After you choose

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment,

3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service

1. We are very glad that customer give us some suggestion for price and products.

2. If any question, please contact with us freely by E-mail or Telephone.


FAQ



Q: Why to choose us? Any advantages?

A: The answer is Yes.

1) The most preferential price:Our offer will be reasonable, our price will be cheaper in the

same quality.

2) Customize: We can make the product as your request, specification,size and quality can meet

your request.

3) Mix order: We accept mix order, different specification and small quantity order.

4) Quality assurance:We have professional quality testing team.They will test the products before shipment.

5) After-sales service:Any question is welcome.

Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
