Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover

  • Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover
  • Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover
  • Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover
  • Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover
Place of Origin Hebei
Brand Name Zhuote
Certification ISO9001-2015
Model Number 405/20/100
Minimum Order Quantity 100 piece
Price Can discuss
Packaging Details Steel belt packaging
Delivery Time 9-13 work days
Payment Terms L/C, T/T
Supply Ability 1500 Square meters/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel, Galvanized Sheet, Aluminium, SS316L, A36 Product Name Steel Grating, Hot-dip Galvanized Heavy Duty Steel Grating For Water Well Cover, Hot Dip Galvanized Mild Steel Bar Grating And Metal Grid Weight, Hot Dipped Glavanized Drain Steel Grating, Fibre Reinforced Polymer Grating
Color Silver, Black, Silver Or As Your Requirement, Based On Customer's Requirement, Matt White. Silvery Type Plain Bar Grating, Steel Plate, 19-w-4, I Type Or Serrated, 40/50
Length As Required, 1-12m, 100-3000mm, Max 6000mm Name Steel Grating, Steel Floor Decking
Highlight

stair treads heavy duty steel grating

,

heavy duty steel grating drain cover

,

serrated bar steel walkway flooring
Leave a Message
Product Description

heavy duty hot dip galvanized stair treads  drain cover aisle industrial platform steel grating



Product Description


Steel Grating Mesh is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes.



1. Description

(1) Structure: Welding with flat steel and cross/round bars with certain distances.

(2) Features: High strength, light structure, high bearing.

(3) Surface: The hot dipped zinc coating gives the product excellent anti-corrosion.



1.Material :Low carbon steel, stainless steel, aluminum alloy
2.Shape and specification
Surface Treatment: Untreated, Painting or Hot Dipped Galvanizing or as requrest
3.Types of Steel Grating: Plain/smooth type, I type ,Serrated/teeth type.
4.Cross bars shape: square bars, twisted square bars,round bars


Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc

Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc

Bearing Bar Pitch: 30mm, 40mm, 50mm, etc

Cross Bar Diameter: 5mm, 6mm, 8mm, etc.

Surface treatment: Hot dip galvanized, Untreatd, Stainless steel , etc



Product Application
It is widely used as flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp,dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian in factories, workshops, motor rooms,trolley channels, heavy loading areas, boiler equipment and heavy equipment areas, etc.

No. Item Description
1 Bearing bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2 Bearing bar pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Cross bar 5*5,6*6,8*8mm(twisted bar or round bar)
4 Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
5 Material Grade

ASTM A36,A1011,A569,Q235,S275JR,SS304,SS400,

Mild steel & Low carbon steel,etc.
6 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
7 Flat bar type Plain,Serrated(tooth-like),I bar (I section)
8 Standard

China:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88),

UK:BS4592-1987,Australia:AS1657-1985,

Germany:DIN24537-1-2006,

Japan:JJS.

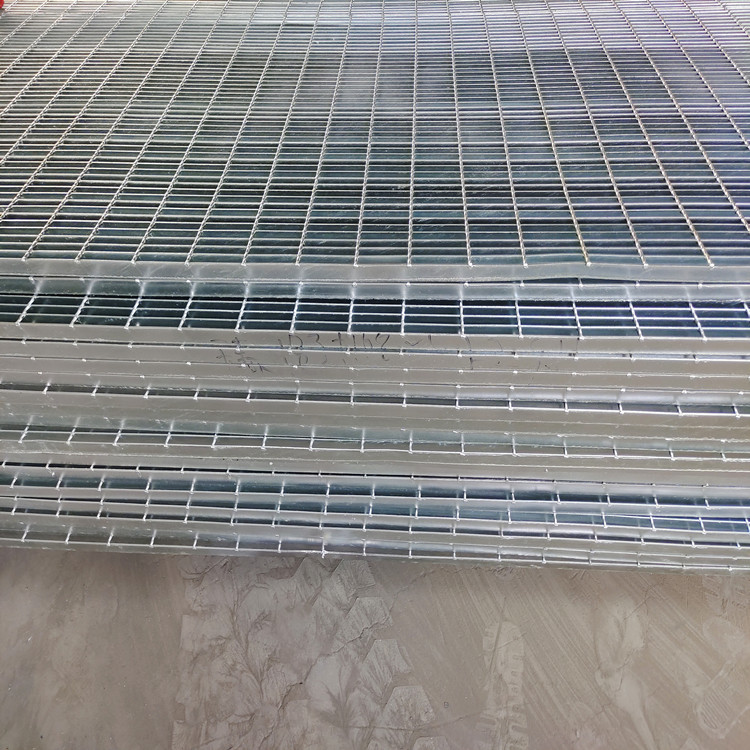

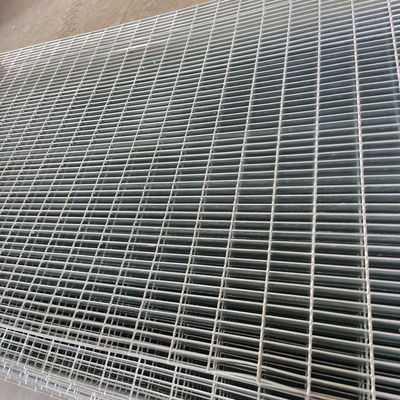

Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover 0

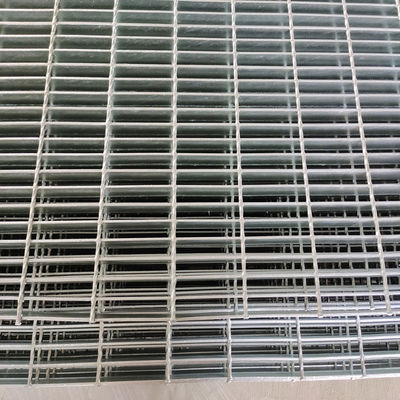

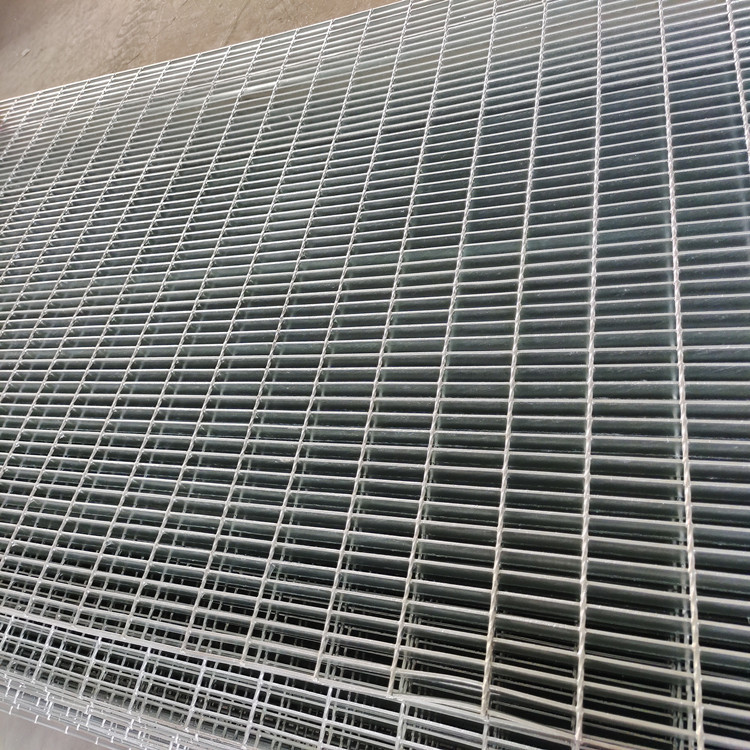

Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover 1Hot Dip Galvanized Heavy Duty Steel Grating Stair Treads Drain Cover 2



Our services

Professional Design Team:
We have a first-class professional designer team, most of them have more than 10 years experience. We focus on designing the products that satisfy customers' needs.
One-stop Service:
We offer a wide range of services to our clients. We support our customers in comprehensive aspects like Design Service, Research & Development, Production, Package, Delivery, Installation, After-sales services.
Quality Assurance:
With advanced technology, production lines equipped with imported machines, as well as experienced workers, we supply the products with high quality.
We own professional QC department, we also accept you arrange your QC or third part to test the goods.
Our Aim:
Our slogan is "the products speak". In spite of different size and different value of the order, we will make our biggest efforts to offer best service and perfect products to every customer. Save both cost and time for customers.

FAQ
Q1:Are you a trading company or a factory?
We are one of industry and trade.
Q2: How can I get a quote?
Contact us with specification, size, quantity and your port, then fast quote with be sent.
Q3:Can the products be customized?
Yes.The company has a professional design team, strict management system, can quickly design according to customers' drawings for
free, and provide professional production plans to ensure the rights and interests of every customer.
Q4:What is your payment method?
30% advance payment.
